The purpose of a vapor barrier is straightforward: prevent ground vapor from rising into your crawl space or basement floor, where it can saturate wood framing, insulation, and HVAC equipment over time. A correctly installed vapor barrier in Elizabethtown requires the right material specification, proper seam treatment, wall coverage, and mechanical fastening to provide lasting protection against moisture migration.
A mil is one-thousandth of an inch, and the difference between a 6-mil sheet and a 20-mil sheet is significant in terms of puncture resistance, lifespan, and moisture vapor transmission rate. For most homes in Elizabethtown, PA, we recommend a minimum 10-mil product for general installation and a 20-mil product for spaces with high moisture loads or frequent access requirements.
Seam treatment is equally important to the material specification when it comes to achieving a functioning vapor barrier system. Seam quality is one of the most overlooked and most impactful aspects of the vapor barrier installation.
Covering only the floor and stopping the barrier at the wall-floor junction leaves the porous block or concrete foundation walls as an open pathway for moisture to enter the crawl space environment. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
High crawl space humidity leads to wood rot in floor joists and sill plates, a process that progresses silently over years before structural symptoms appear. A well-installed vapor barrier is also a prerequisite for effective dehumidifier integration in crawl spaces where mechanical moisture extraction is warranted.
Every installation meets or exceeds Elizabethtown, PA building standards.
We source reinforced 20-mil poly sheeting and commercial butyl tape, not the hardware store equivalent.
Full perimeter coverage is non-negotiable in our installation standard.
You receive documentation of your warranty before we leave the property.
We install reinforced polyethylene sheeting across the entire crawl space floor with full wall coverage and butyl-taped seams throughout.
We remove deteriorated existing barriers, prepare the substrate, and install a properly spec'd replacement that meets current installation standards.
The installation includes full seaming, perimeter taping, and wall coverage to the base of the finished wall or sill plate.

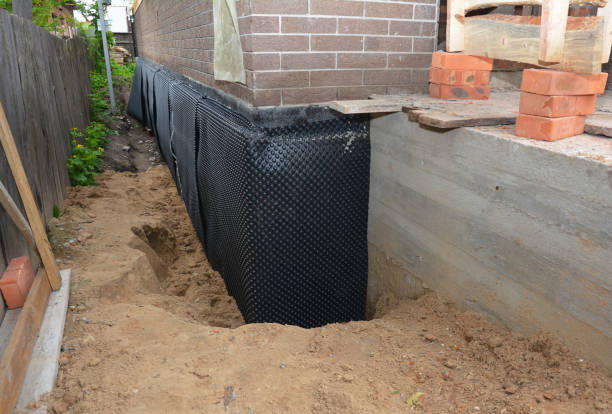

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
Adding a properly sized dehumidifier completes the moisture management system and ensures consistent relative humidity control regardless of outdoor conditions.
Inspection findings are documented with photos and a written report detailing any deficiencies and recommended corrective actions.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
"We had a previous vapor barrier installation that was barely 6-mil and had separated seams throughout. The humidity in our crawl space was unacceptable and we were starting to see mold on the floor joists. JCB Waterproofing and Construction removed the old liner and installed a commercial-grade system with butyl tape seams throughout. The difference in our indoor air quality was noticeable within a week."
"Very professional team that explained the difference between the grades of vapor barrier sheeting before recommending anything. They went with 20-mil for our space and the installation looks perfect. We can already see the humidity meter reading dropping consistently."
"The crew extended the barrier all the way up the walls to the sill plate, which the contractor who did our original installation did not do. That wall coverage made a huge difference in our humidity levels. Great work from a team that clearly knows what they are doing."
Contact JCB Waterproofing and Construction for a free site evaluation and written estimate for vapor barrier installation in Elizabethtown
